Roger BaseStation Studio
Phonak offers the Roger BaseStation, the Roger Touchscreen Mic, the Roger Multimedia Hub, Roger Repeater and Roger WallPiolt for unlimited flexibility. With the 2.4 Ghz protocol for wireless connections developed by Phonak, the Phonak Roger System us easy to set up and even easier to use, thanks to the plug-and-play configuration.
![Untitled design (12) Courtroom Receivers](https://womcom.com.au/wp-content/uploads/2024/07/Untitled-design-12-e1720661606771.png)
Roger BaseStation for larger spaces
Roger BaseStation is a stationary Roger transmitter designed to broadcast audio from a sound system. Roger BaseStation transmits to Roger (02) receivers and Roger DigiMaster5000/7000 loudspeakers.
For large area applications, the Roger BaseStation transmission range can be extended with the addition of Roger Repeaters, strategically placed within the area. Roger BaseStation can be connected to a network of all Roger for Education devices, including Roger WallPilots.
Key Features of Roger Technology
Ease of Use
Users can effortlessly collect a receiver or use their personal Roger Receivers access enhance speech understanding in noisy environments.
Wireless Connectivity
The Phonak Roger BaseStation serves as a central hub that wirelessly transmits audio to compatible Roger receivers worn by users. This wireless transmission ensures clear and direct communication without the limitations.
Range and Coverage
The Roger BaseStation offers a reliable transmission range within a specified area, ensuring that users can move around freely while maintaining clear audio reception from the Roger BaseStation.
Components of the Phonak Roger Studio
![icon roger soundfield](https://womcom.com.au/wp-content/uploads/2024/07/BaseStation_ok-e1720664949145.gif)

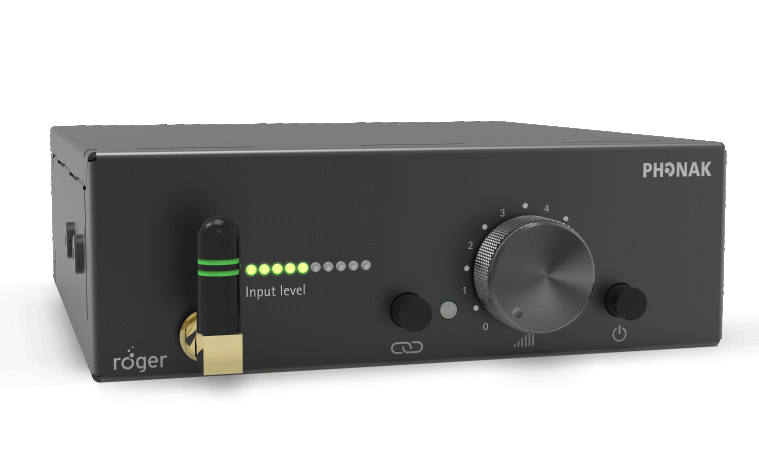

Roger BaseStation
- License free 2.4 GHz transmission
- Adaptive automatic frequency hopping
- Balanced audio in (XLR or 6.3)
- Audio input graphical display
- Volume control: –14 to +12 dB
- Bandwidth: 100–7200 Hz
- Transmission range: 15–40 m (depending on environment)
![Phonak Roger Multimedia Hub L](https://womcom.com.au/wp-content/uploads/2024/07/csm_Packshot_Roger_Repeater_Perspective_d6691a7bed-1-e1720667040798.webp)

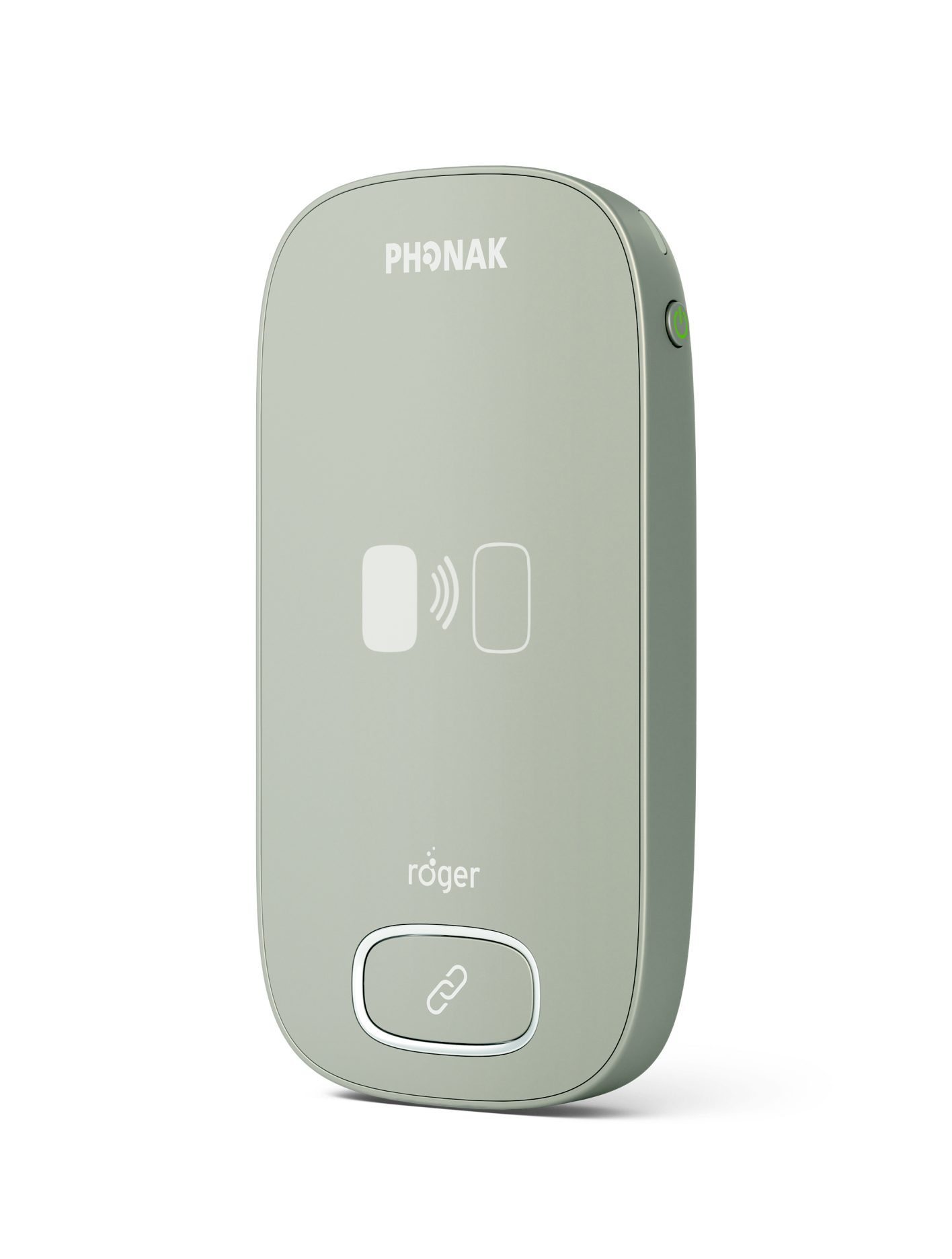

Roger Repeater (Range Extender)
- Unlimited range extension
- Integrated rechargeable battery
- Operates standalone or permanently powered
- Indicator lights
- Fixing bracket and power supply included
- Micro-USB socket
- Easy wall mounting
- Easy snap-in/out
- Power supply cable retention
![Roger WallPilot](https://womcom.com.au/wp-content/uploads/2022/03/Roger-Wall-PilotL.png)
Roger WallPilot
A wall-mounted device that automatically connects Roger receivers to the spaces Roger network.
- Connects automatically Roger receivers to Roger network
- Adjustable operating range
- Wall-mounted (plugged in power cable)
![Roger Touchscreen Mic](https://womcom.com.au/wp-content/uploads/2024/07/PH_Packshot_Roger_NeckLoop_lying_042-4001-P5.png)

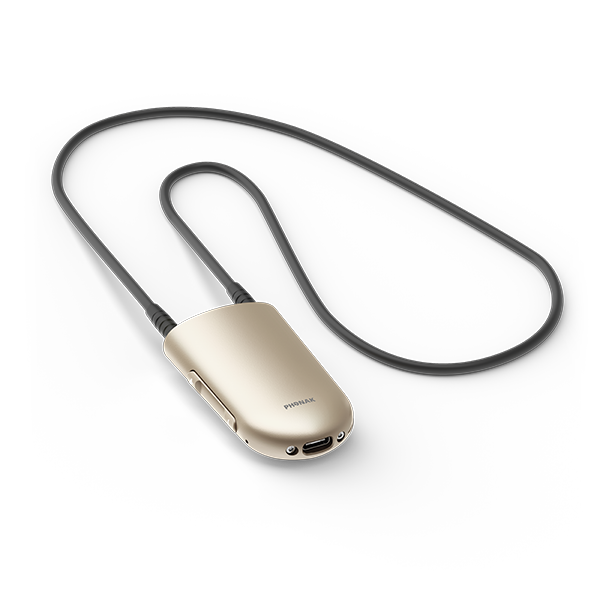

Roger NeckLoop
Roger NeckLoop is a wireless Roger receiver that pairs any hearing device with a T-coil to Roger microphones, helping you understand speech better in noisy environments or at a distance from a speaker.
- Compatible with any telecoil-enabled hearing aid or cochlear implant, whether from Phonak or an alternate brand
- Lightweight and discreetly worn around the neck or under clothes
- Easy to use with clear indications, such as battery status, that provide reassurance to use it throughout the day
Roger Studio
Ideal for large areas and multiple spaces
